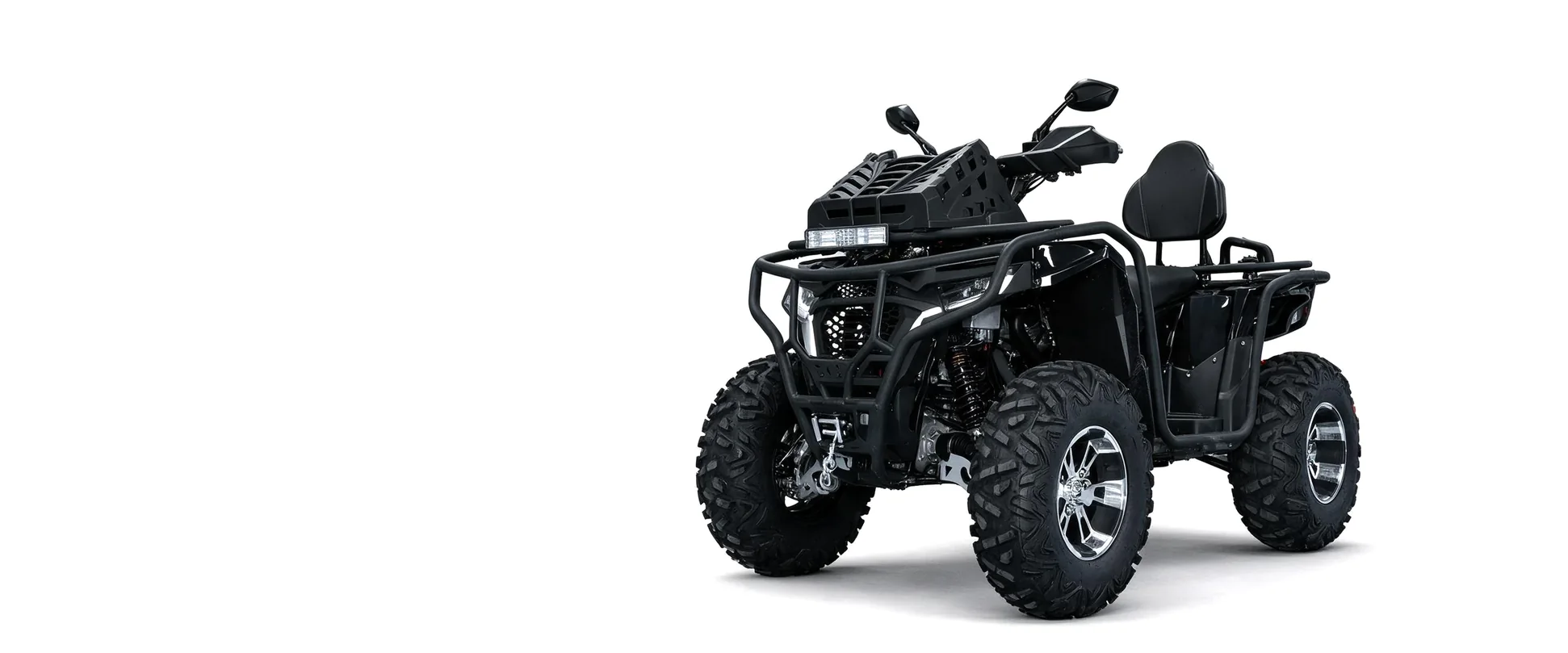

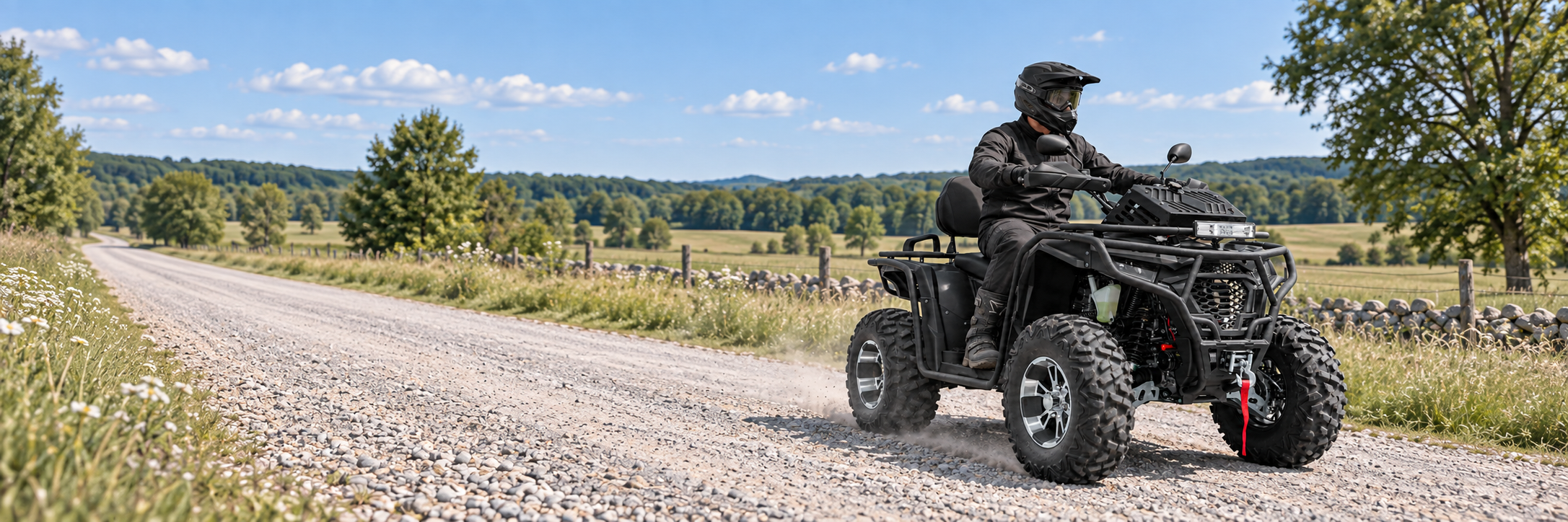

Useful power. Straightforward choices.
A liquid-cooled 321cc single powers the S350, with a CVT taking care of ratio changes. High and low ranges give you a choice as the task or route changes.
SUMAHAOS350
Practical four-wheel drive. Make the day your own.
Get out. Get on with it.
The S350 puts useful choices into a straightforward ATV. Selectable four-wheel drive and a CVT handle the route, while racks, LED lighting and a fitted winch add purpose beyond the ride.
- Engine
- 321mlPulls its weight on the job, keeps the weekend fun.
- Drive
- 4WD2WD / 4WD / differential lockSwitch to 4WD when the trail turns to mud.
- Transmission
- CVTCVT, R/N/H/LLow range for heavy loads, high range for the ride home.
- Power steering
- EPSEquippedLighter steering, so a long day still feels short.
- Ground clearance
- 300mmRoom to clear rocks, roots and ruts.
- Fuel tank
- 16LFewer stops between the job and the ride home.
- Weight
- 368kgNet weight
Trims & specs.
SUMAHAO S350
S350 BASE
Specs
- Engine
- 321 cc, single-cylinder
- Maximum power
- 21 kW @ 7,000 rpm
- Maximum torque
- 34.5 N·m @ 5,000 rpm
- Drive
- 2WD / 4WD / differential lock
- Fuel tank
- 16 L
- Ground clearance
- 300 mm
- Rack capacity
- Front 50 kg / rear 90 kg
- Winch
- 3,000 lb
Performance for the day ahead.
Choose a drive mode, set the range and get on with your plans. The S350 brings engine, transmission and suspension together around practical use.

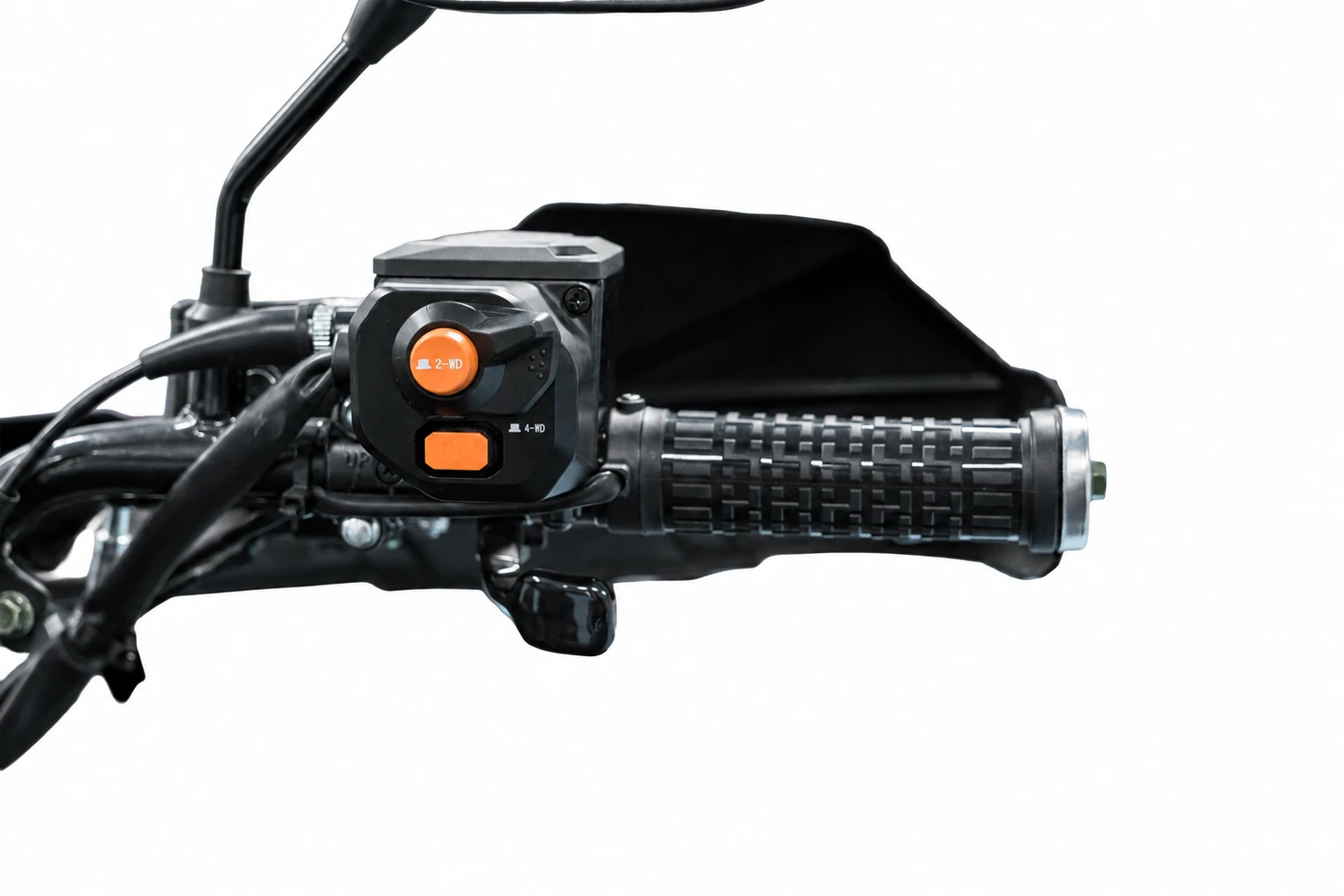

Choose how the power reaches the ground.
The drive selector gives you 2WD, 4WD and differential-lock choices. Set up for the surface ahead; the complete specification lists the full drivetrain details.

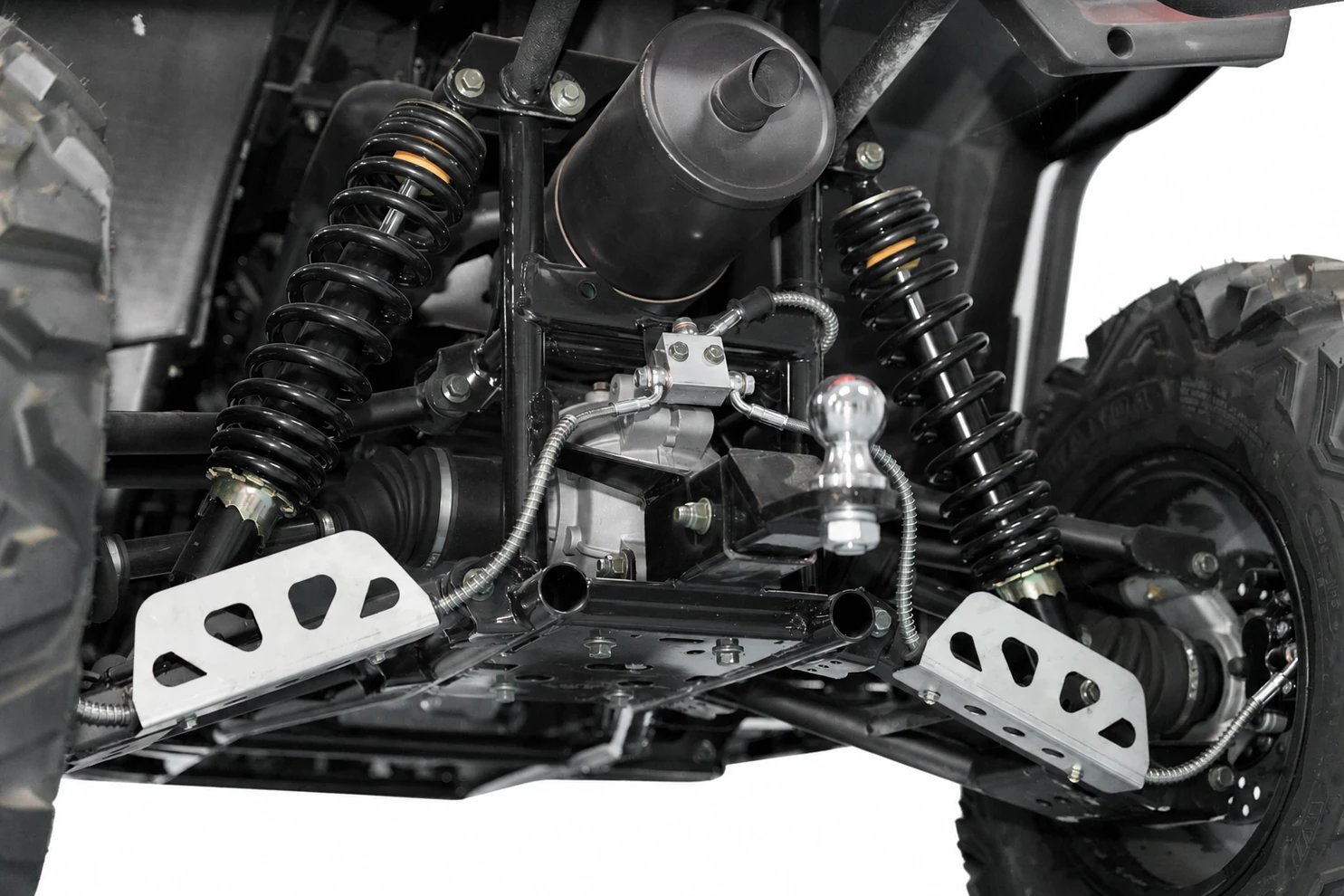

Room for the wheels to move.

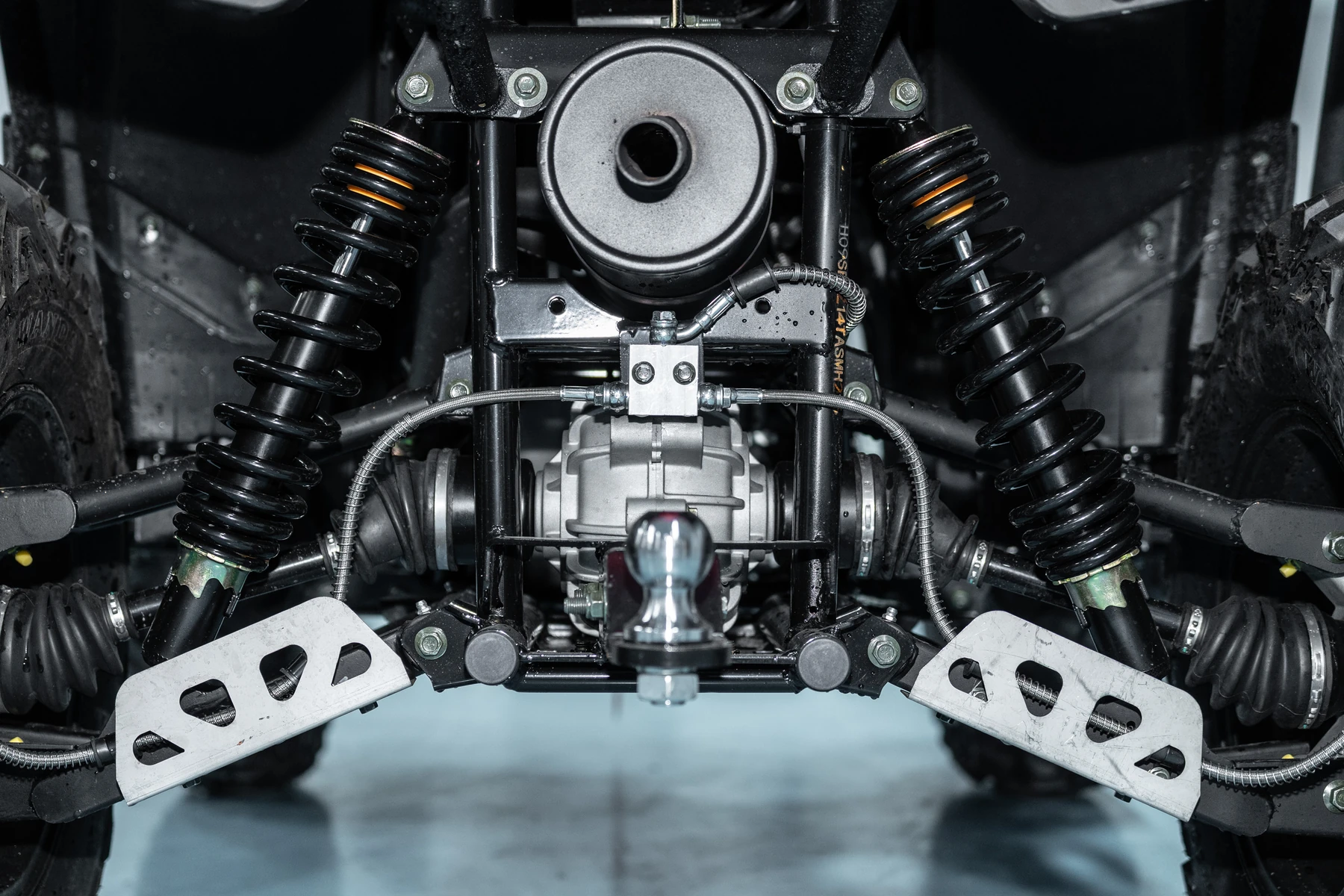

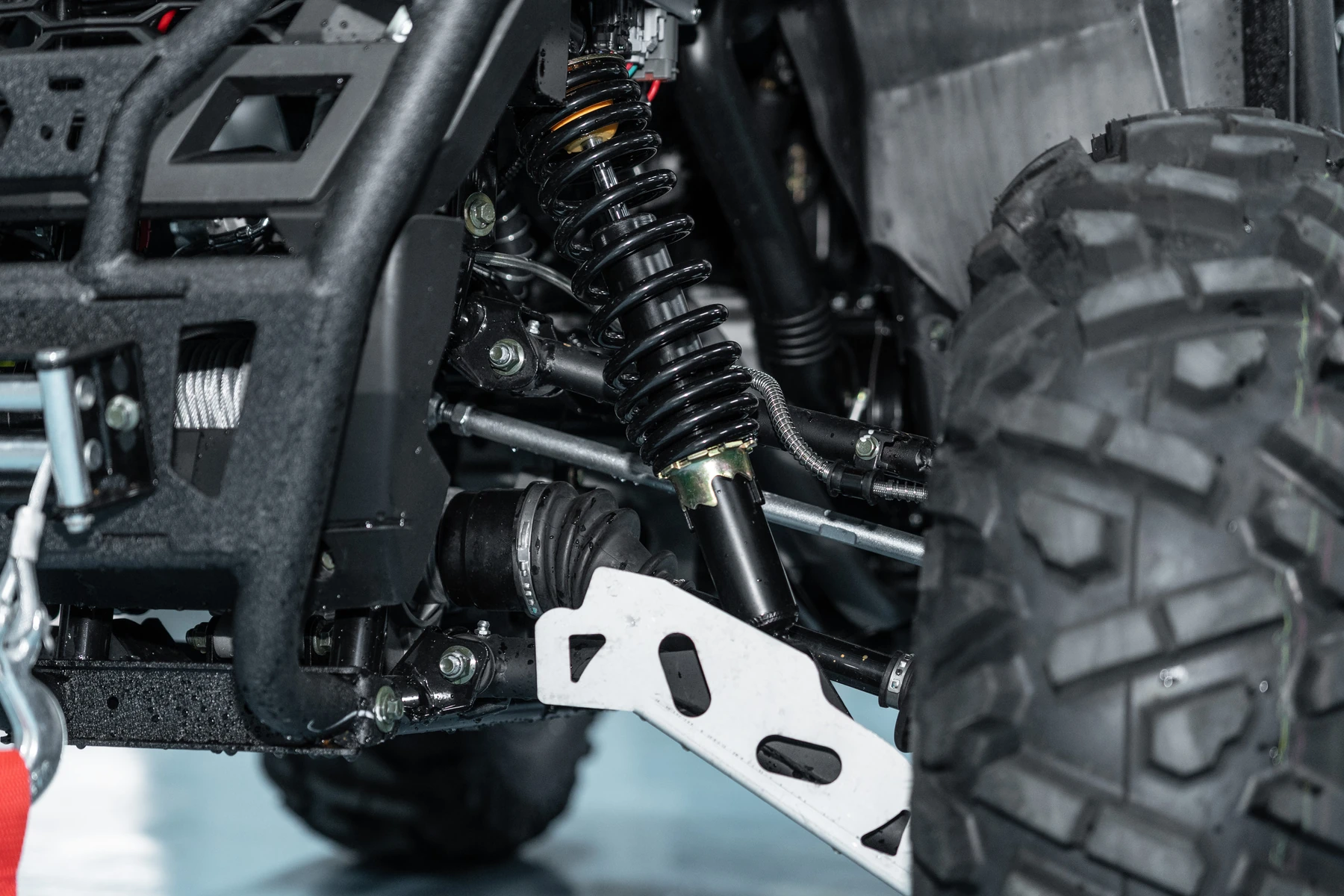

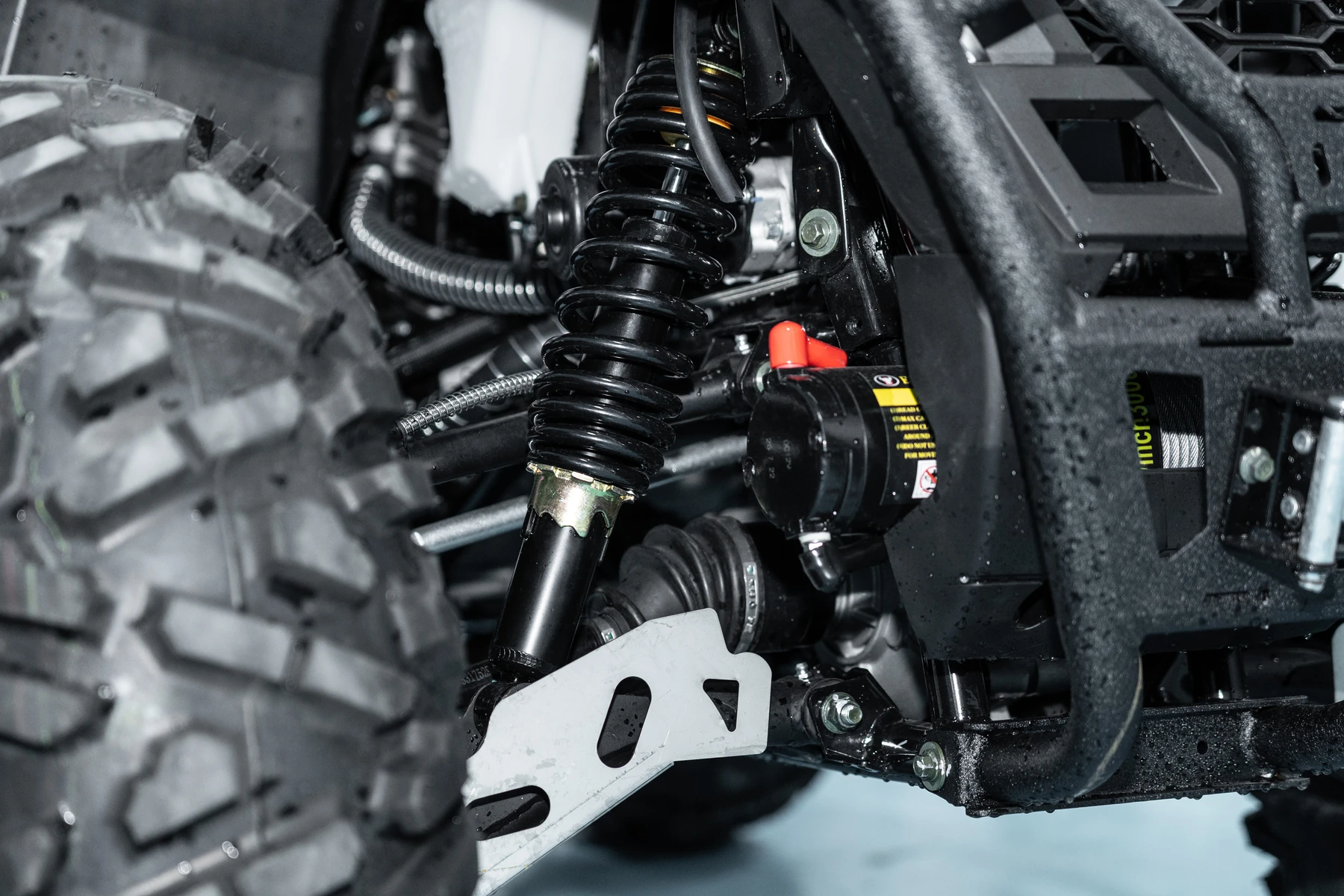

Double A-arm suspension and coil-spring shock absorbers give the chassis a way to manage wheel movement on uneven ground. Explore the suspension details as you plan the ride.

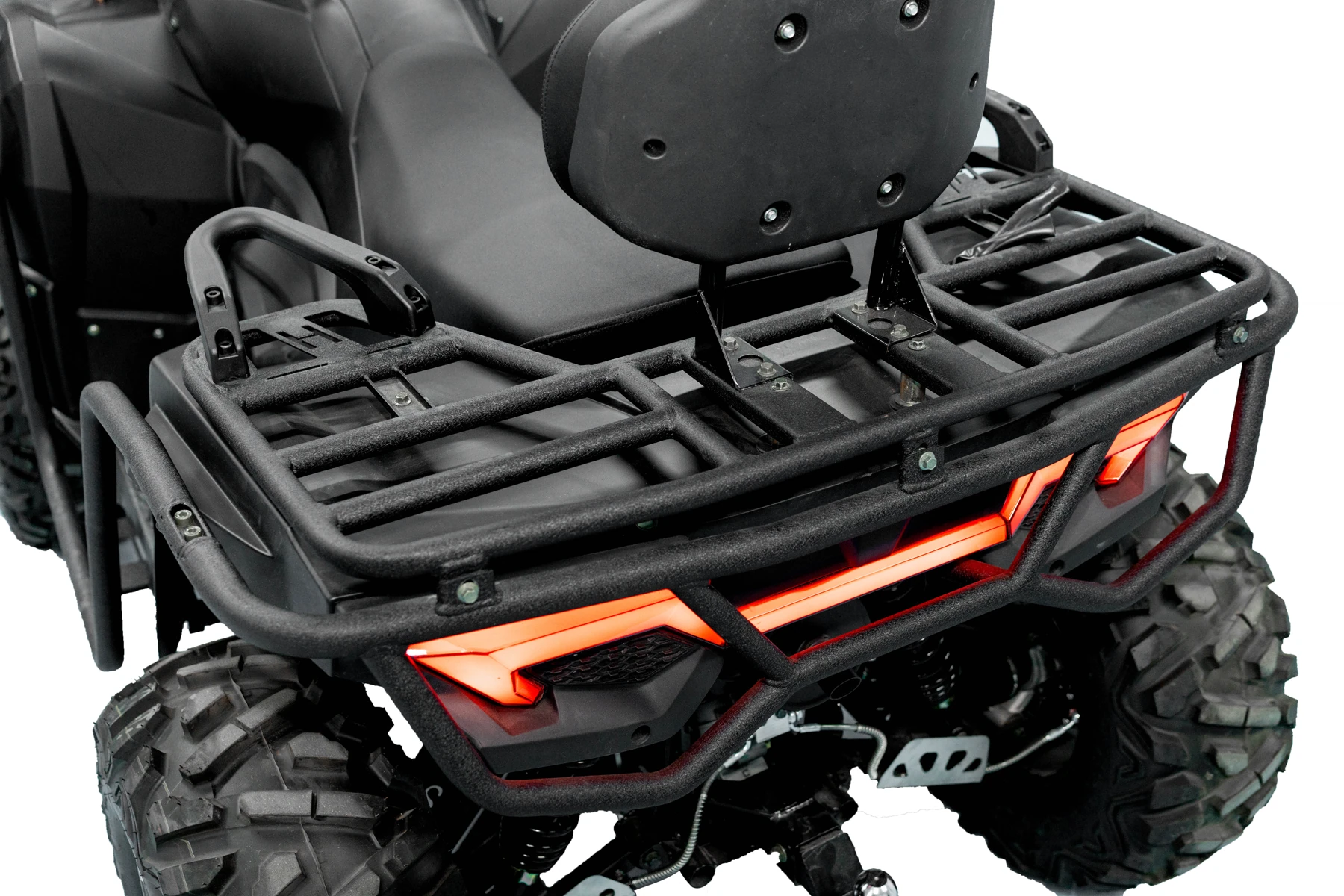

Put the racks to good use.
Tools for a task or essentials for time outside: the front and rear racks give them a place to go. Their individual load limits are listed clearly in the specifications.
Design, in detail.

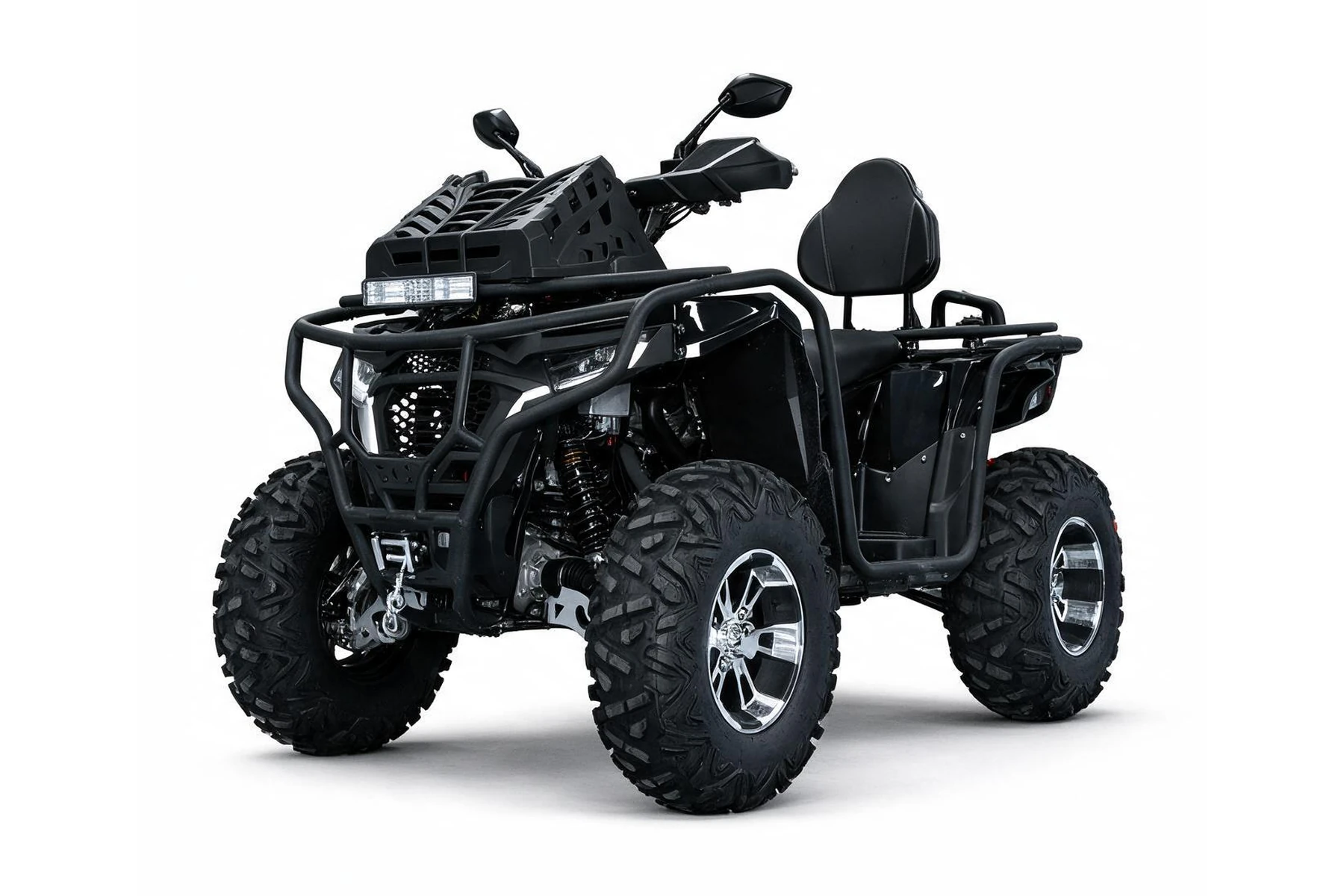

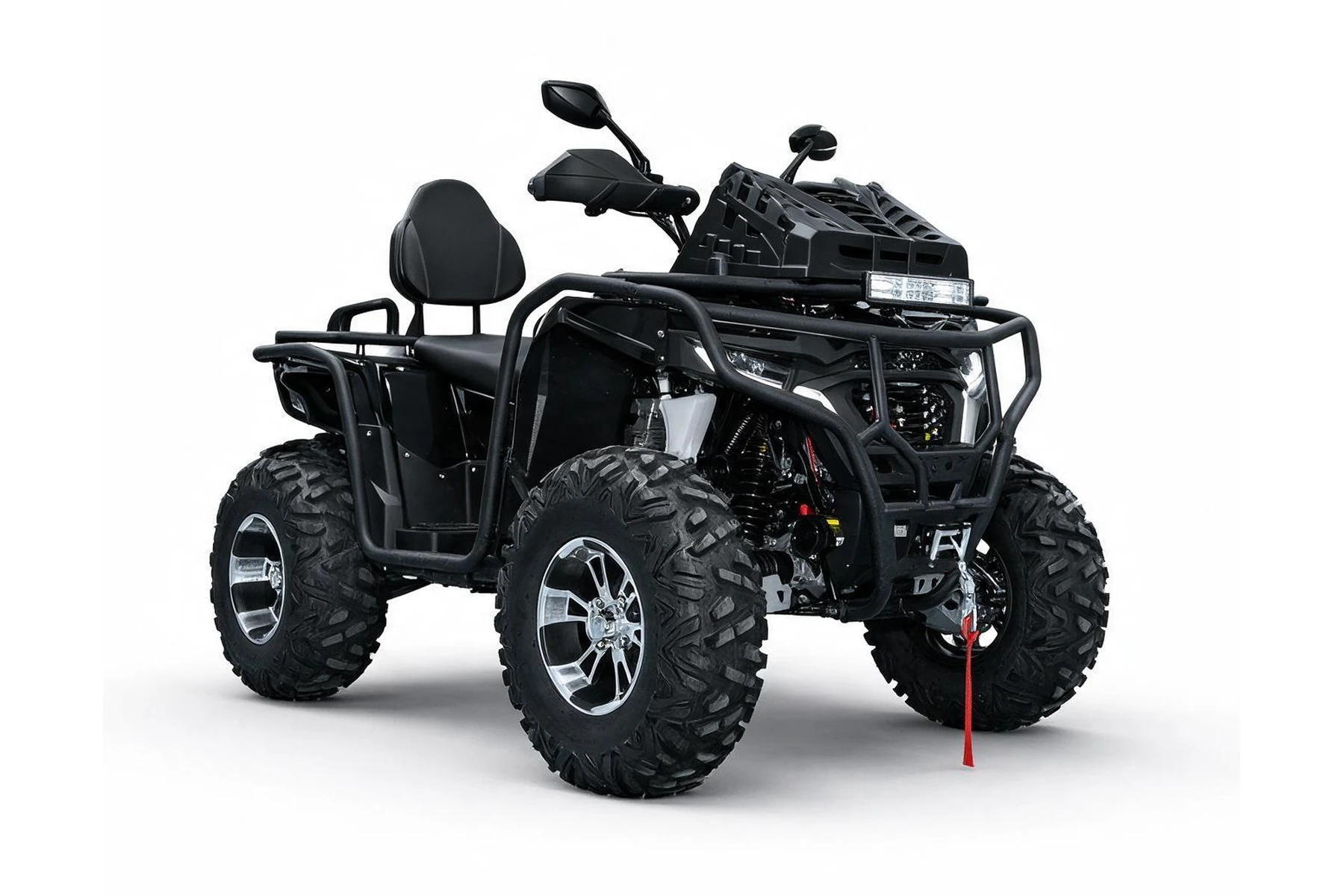

Black bodywork gives the S350 a purposeful look. The racks, lighting and visible chassis details show how that character carries through the vehicle.
A practical place for your gear.
Front and rear racks add carrying space around the black bodywork. Plan a useful load for the day while keeping each rack within its own rating.
Light at both ends of the ride.

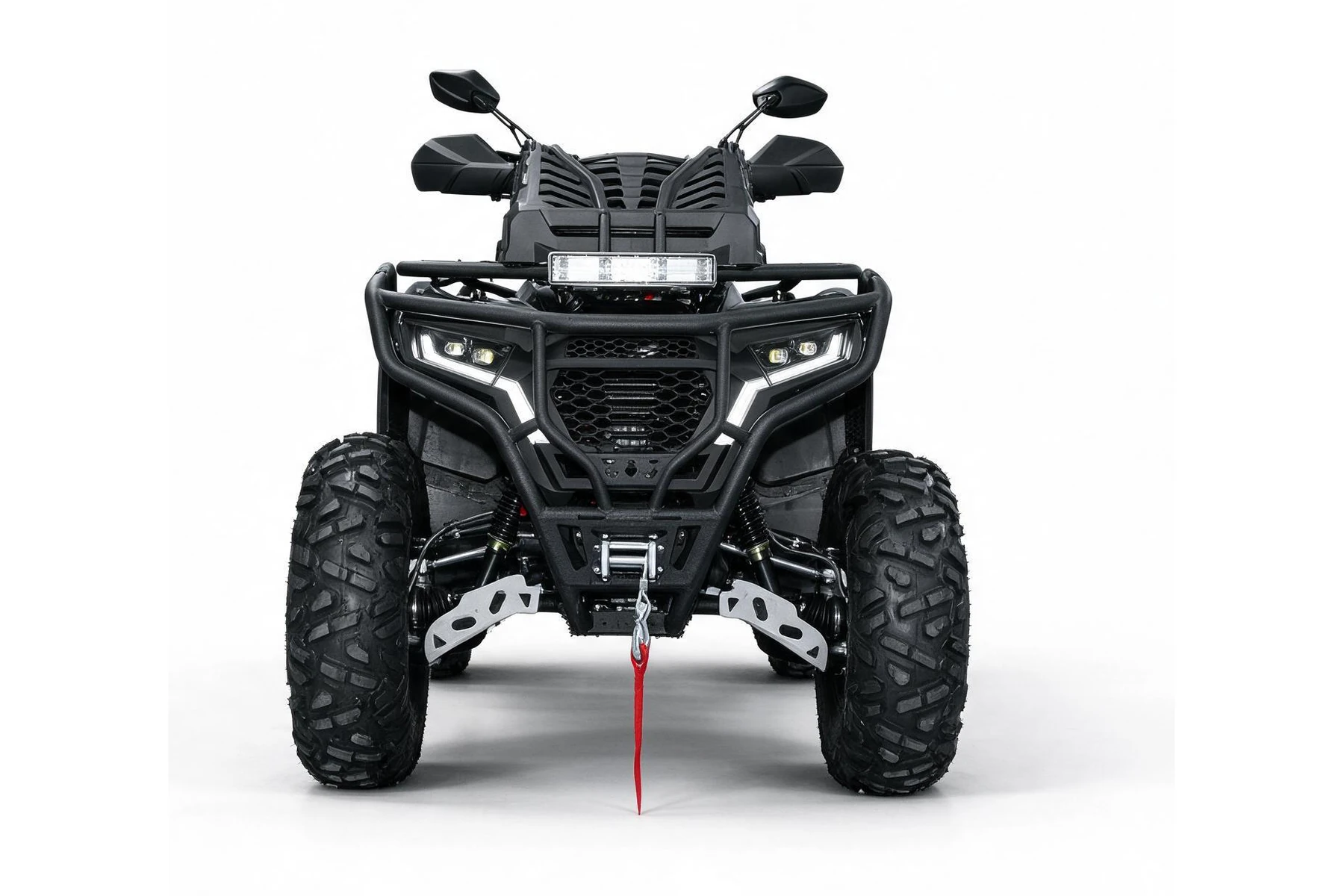

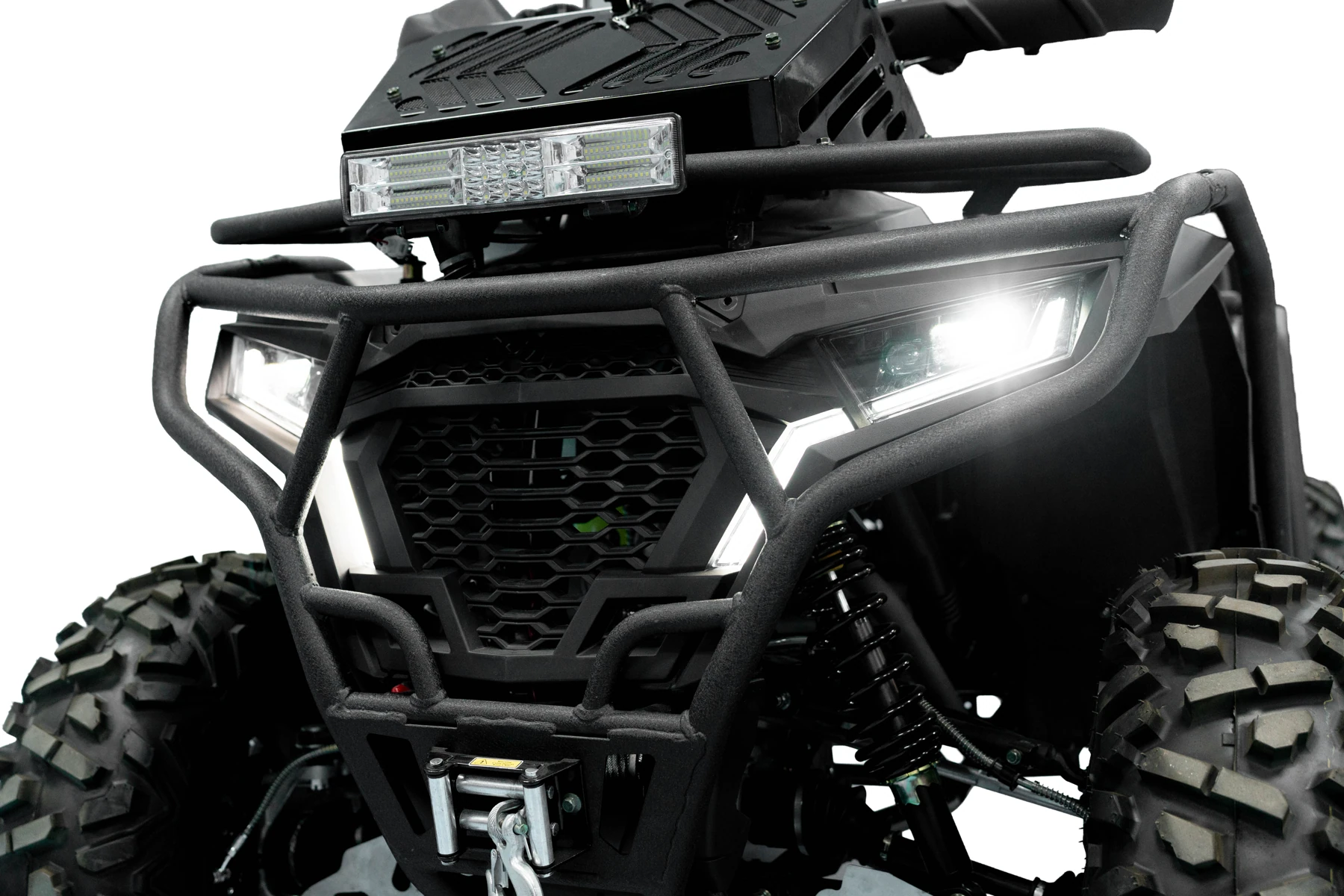

LED front headlights and combined rear lighting are part of the S350 setup. Their placement gives the bodywork a distinct front and rear signature.

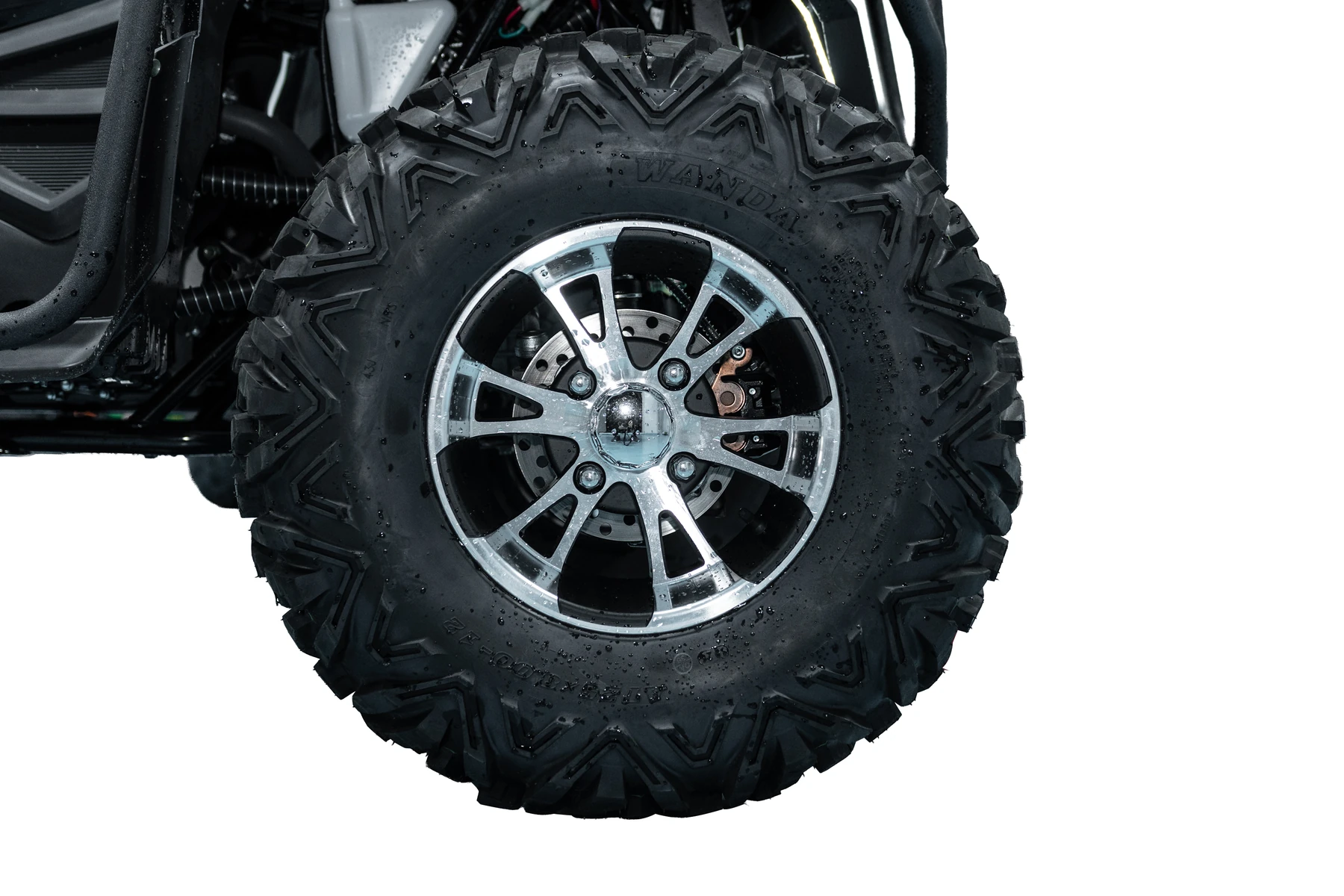

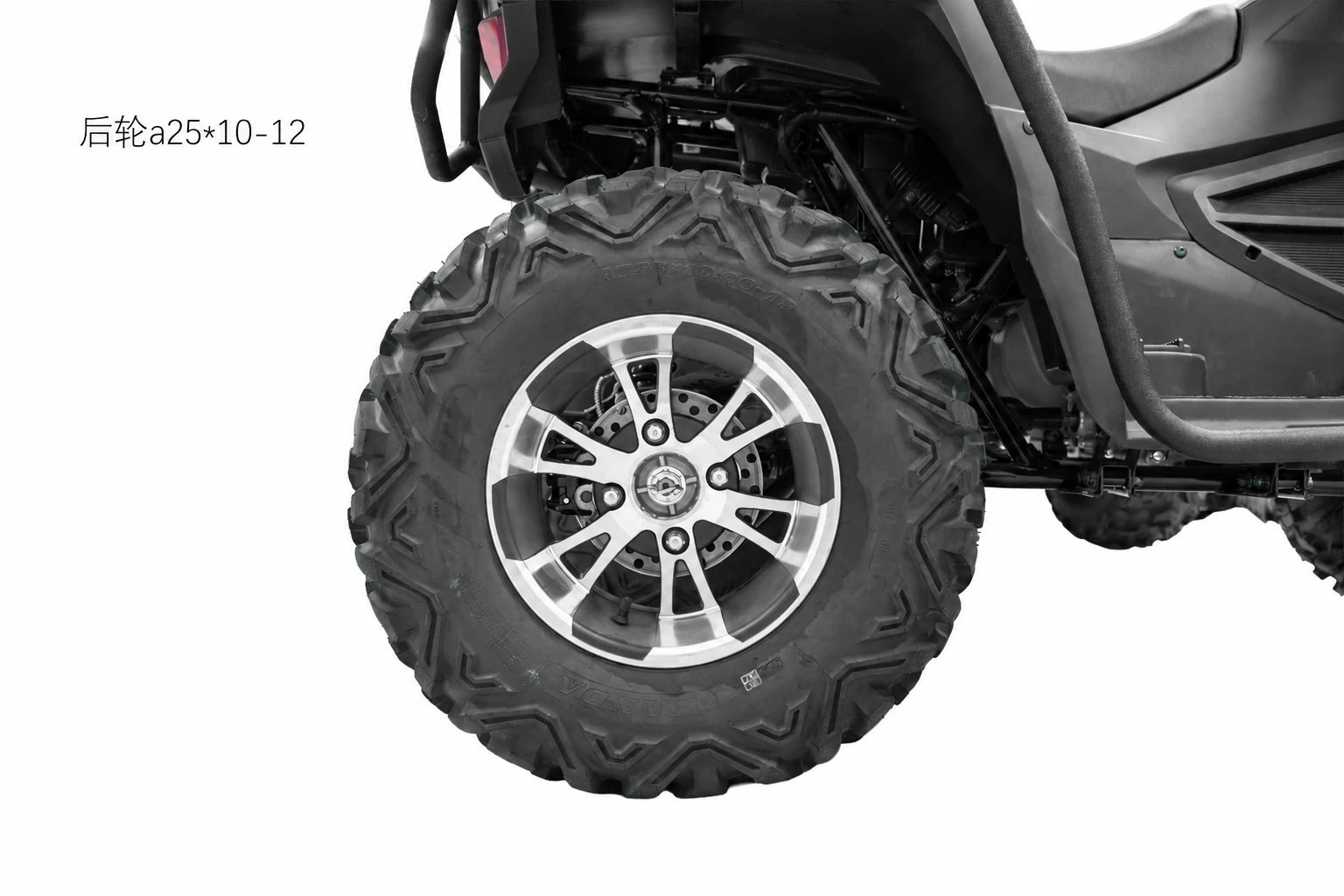

A purposeful finish at ground level.

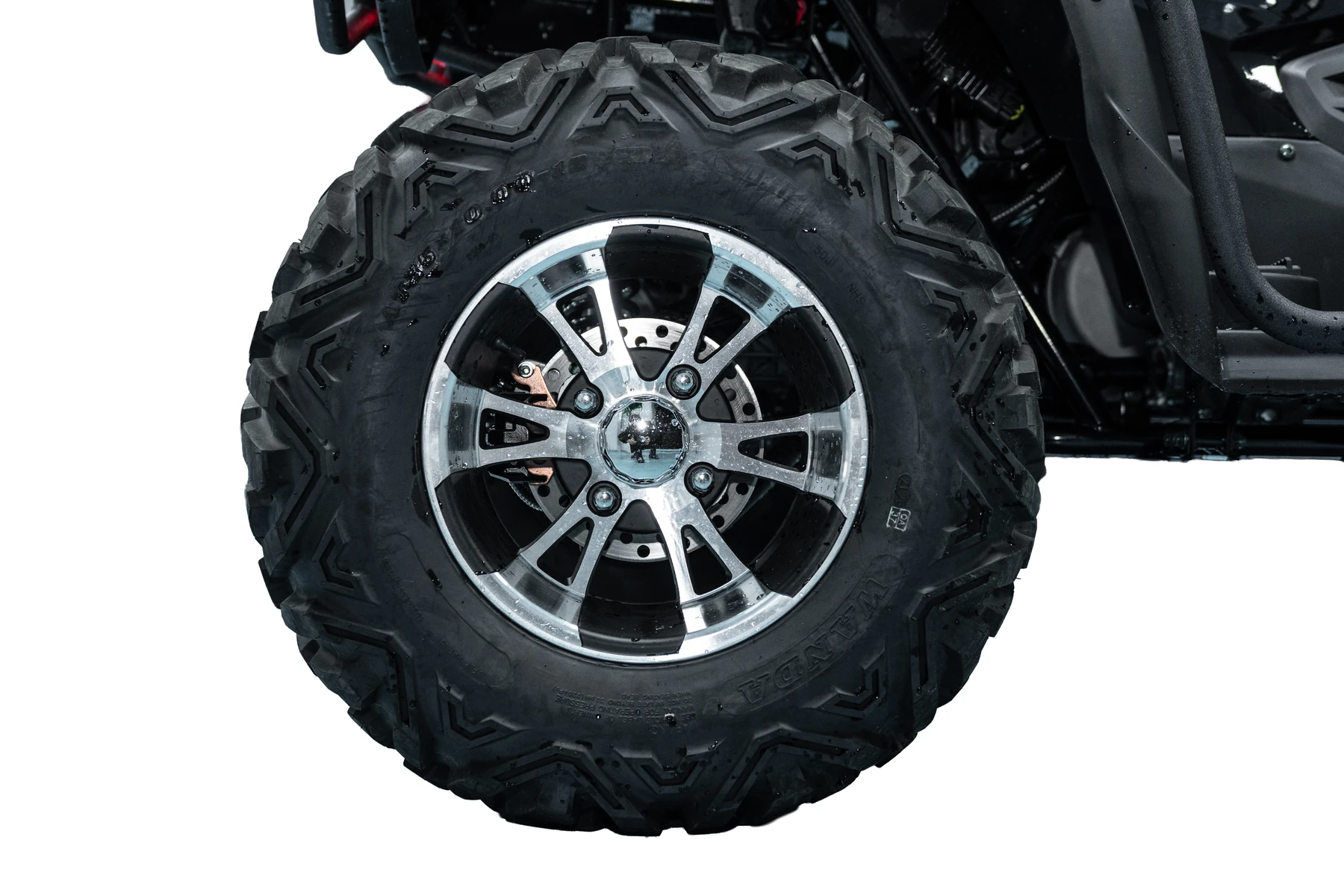

12-inch aluminium alloy rims and the photographed tread give the S350 a distinctive wheel setup. Front and rear tyre specifications are listed separately, making the next configuration conversation more precise.

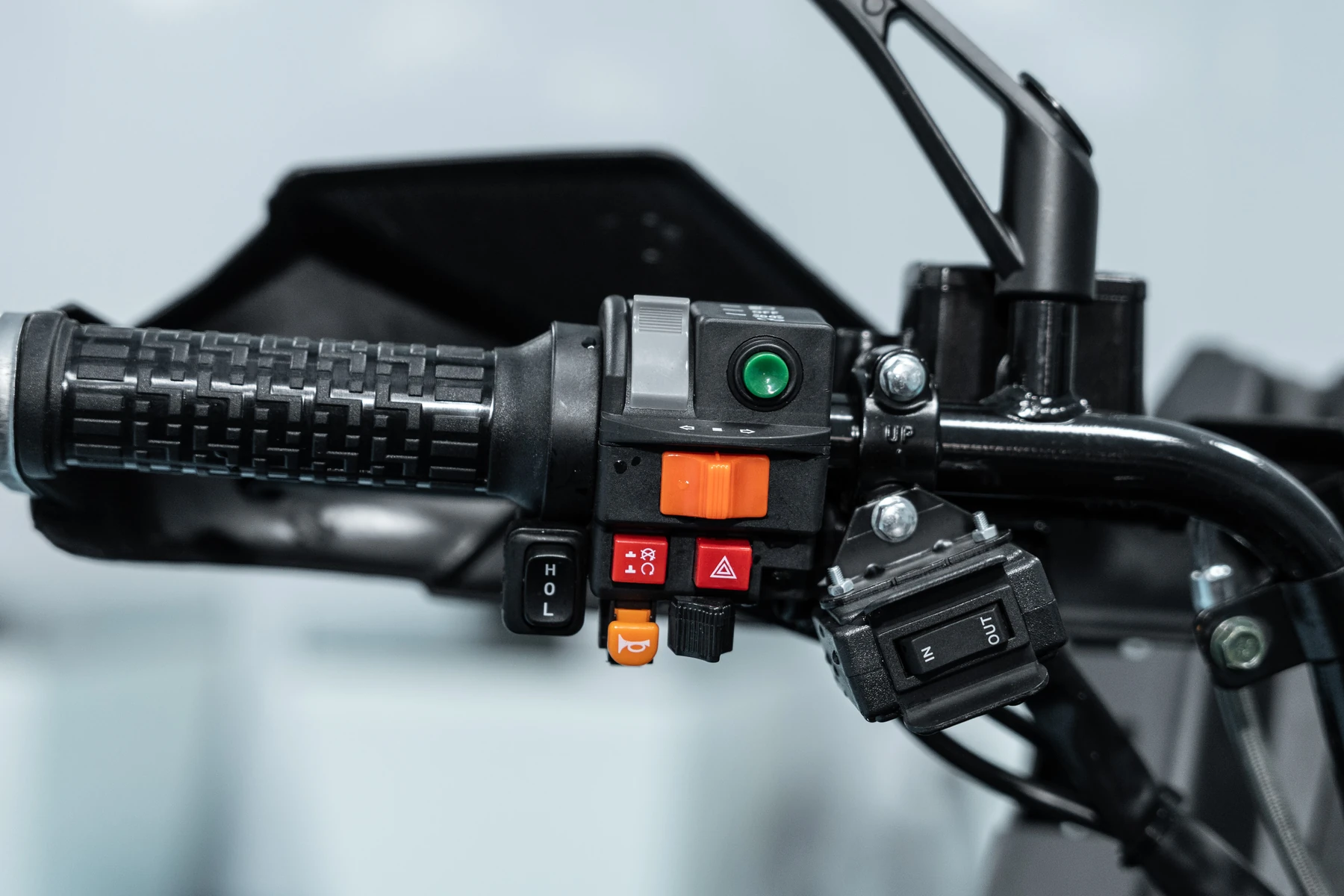

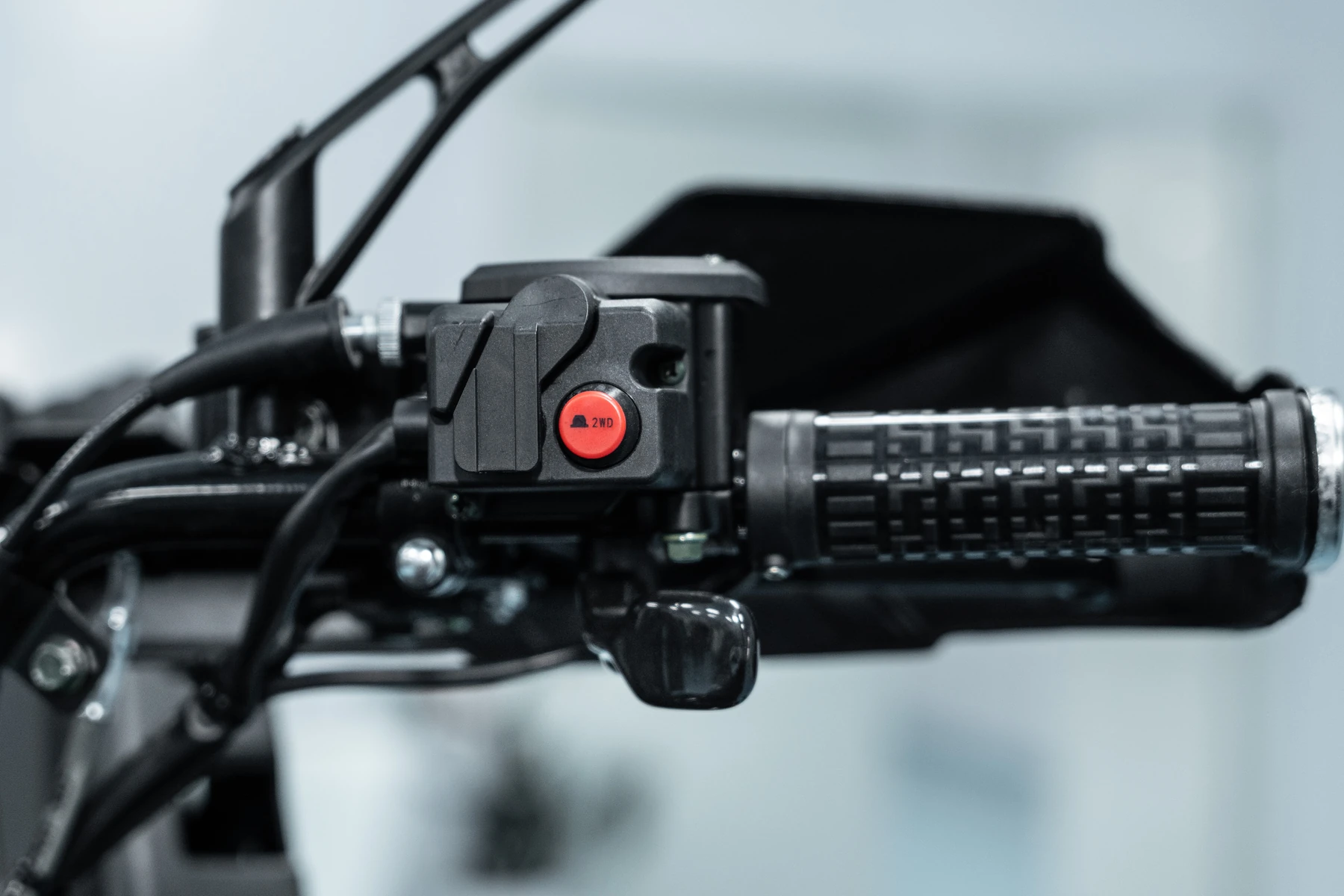

Drive choices at your fingertips.
The photographed handlebar switches put the drive choices close at hand. Electric power steering assists your inputs, with the CVT providing the range options for the task.
A closer look at your ATV.

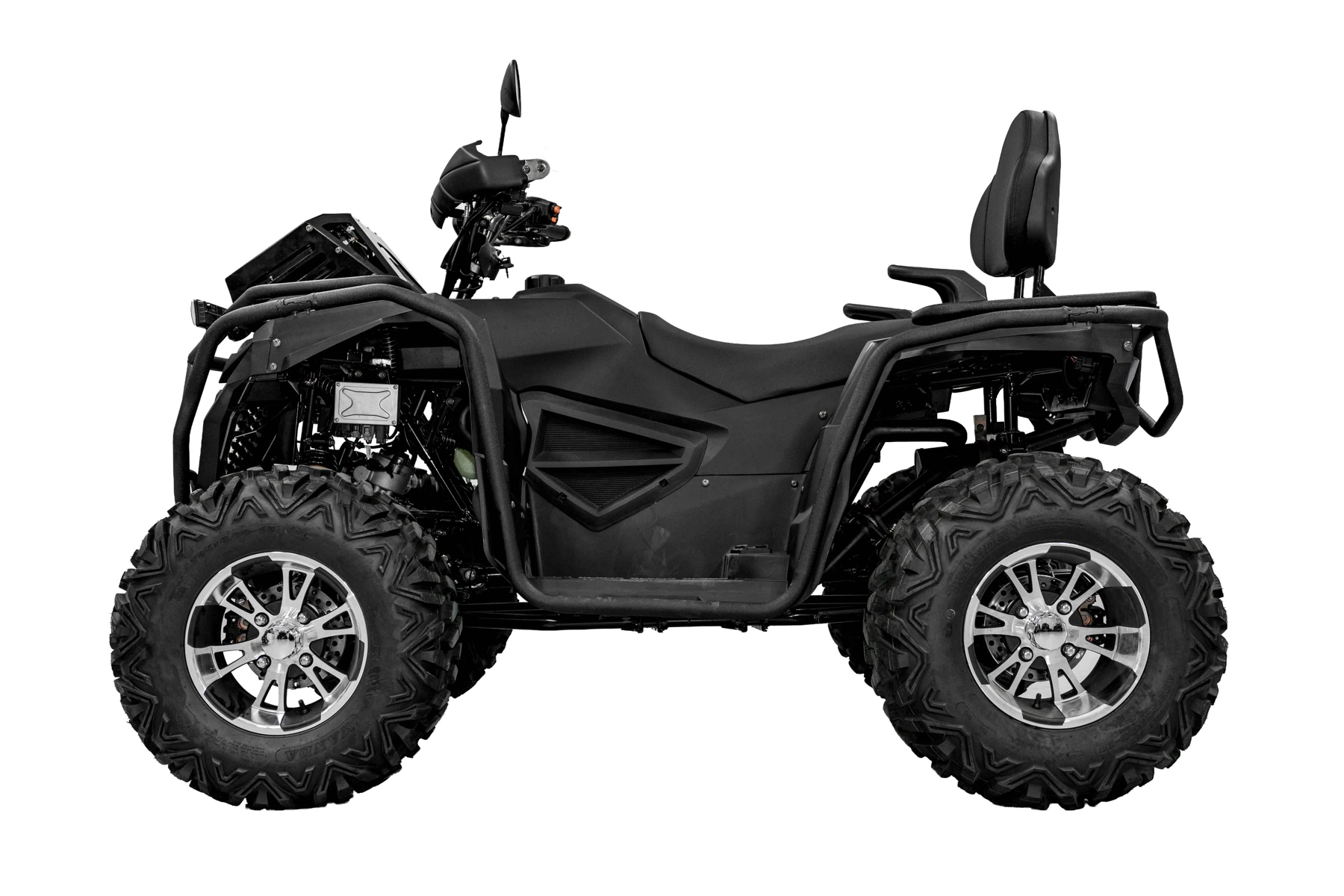

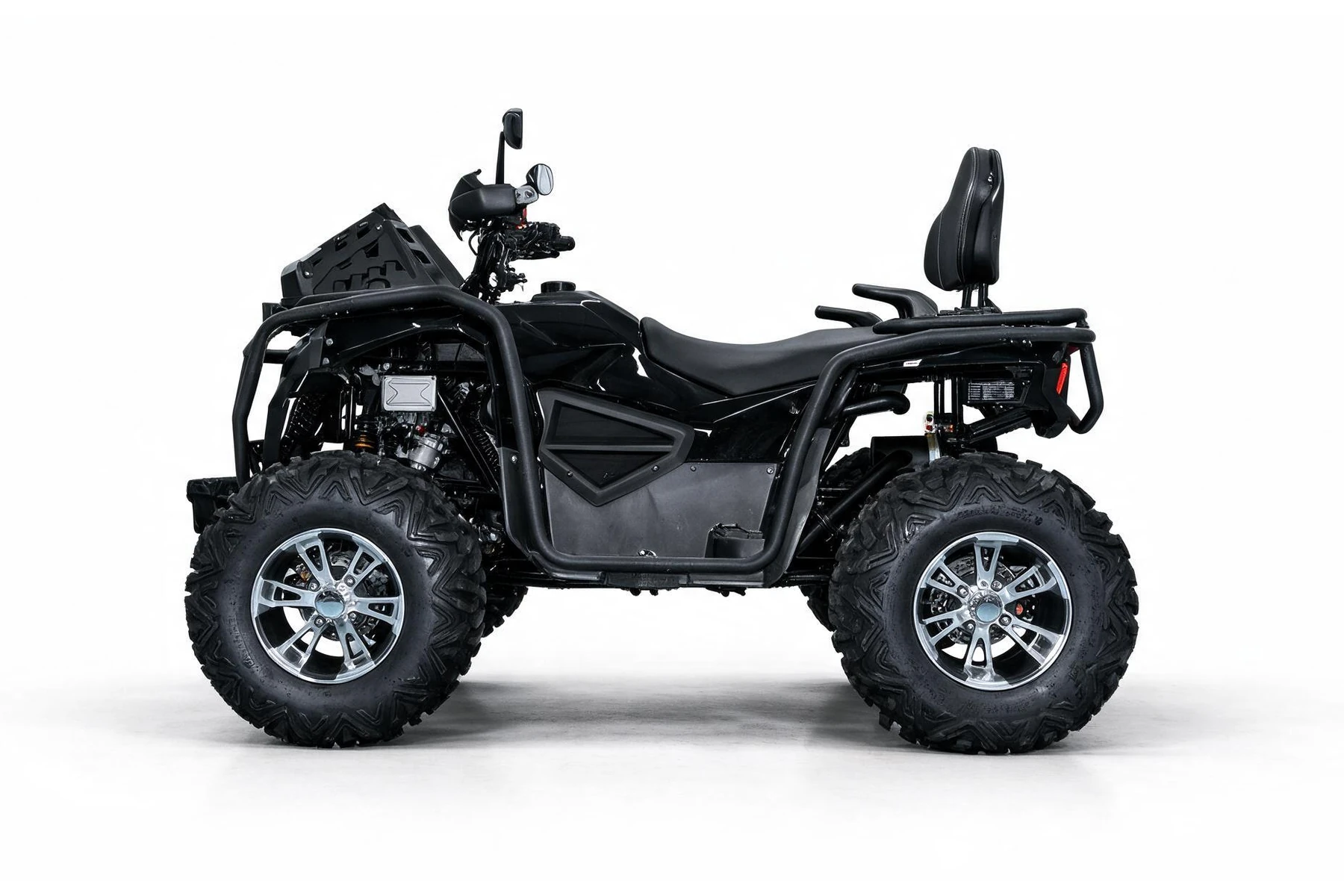

Explore the vehicle from another perspective.
Technology for the essentials.

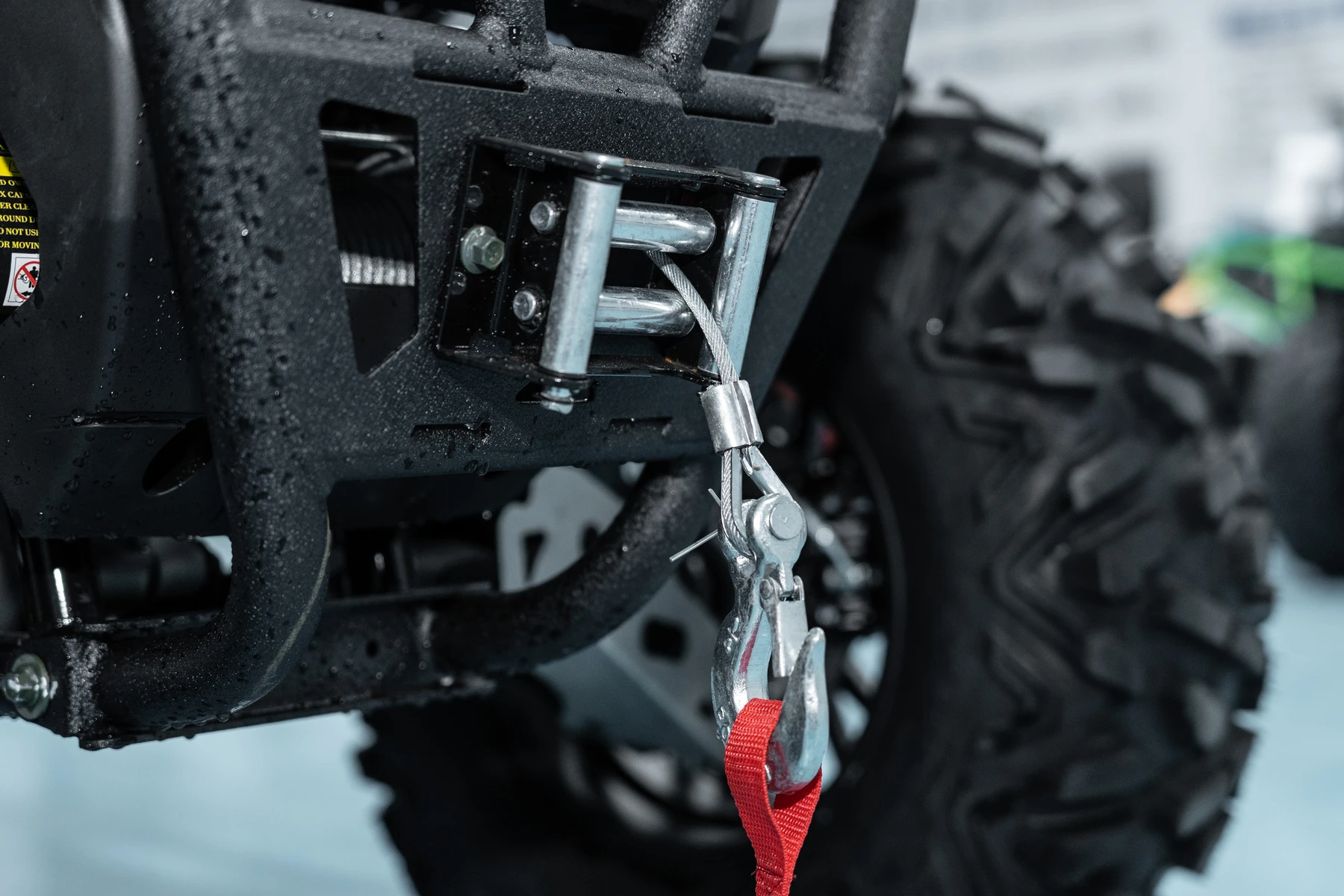

Information in view, lighting around the vehicle and a winch for a recovery option. The S350 gives these features a place in everyday use.

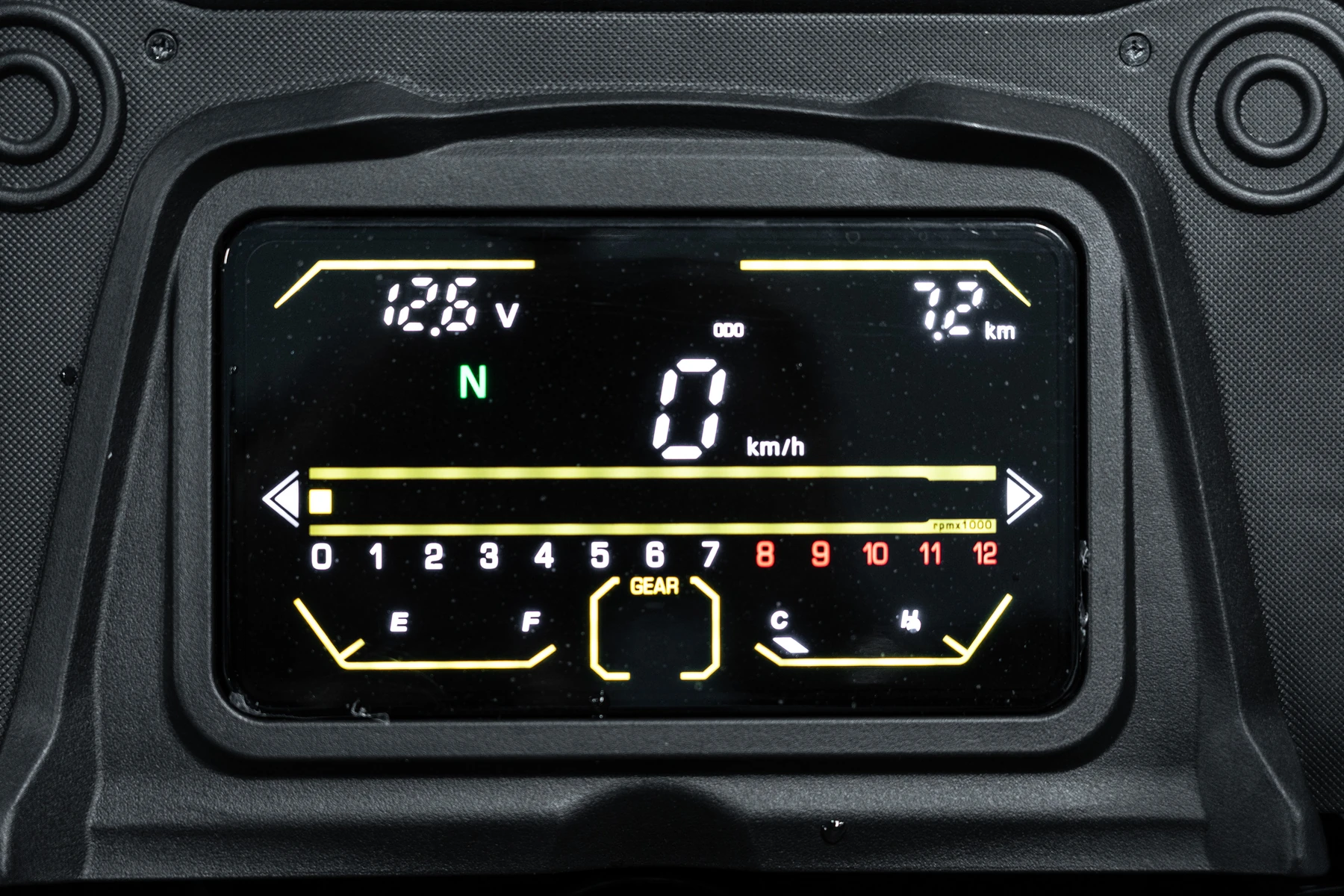

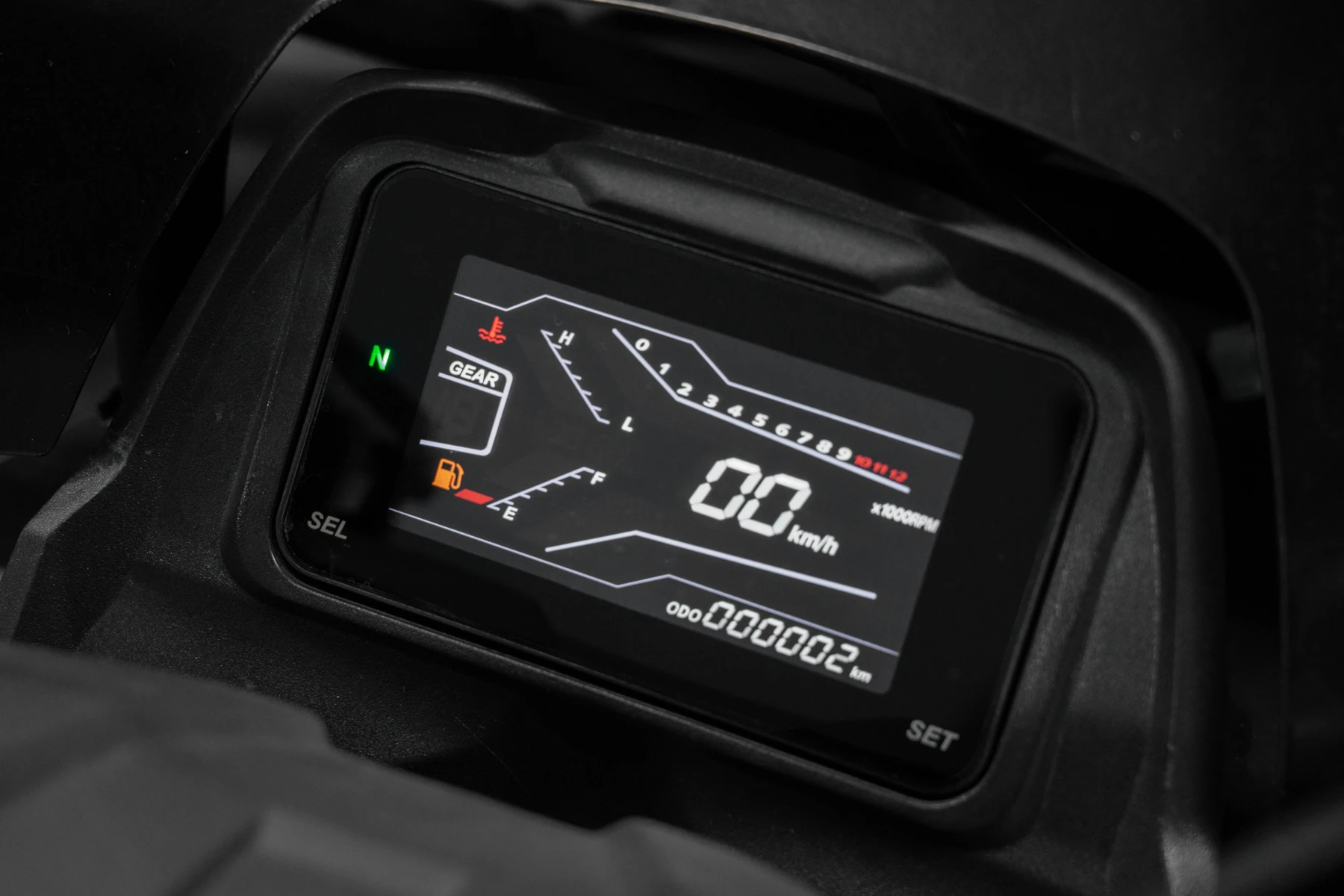

Keep the readouts together.
A single instrument panel brings speed, gear and vehicle readouts into one view. Its colour LCD gives the rider area a clear focal point.
1 / 3
Model highlights.
A closer look at the design, controls and everyday details.

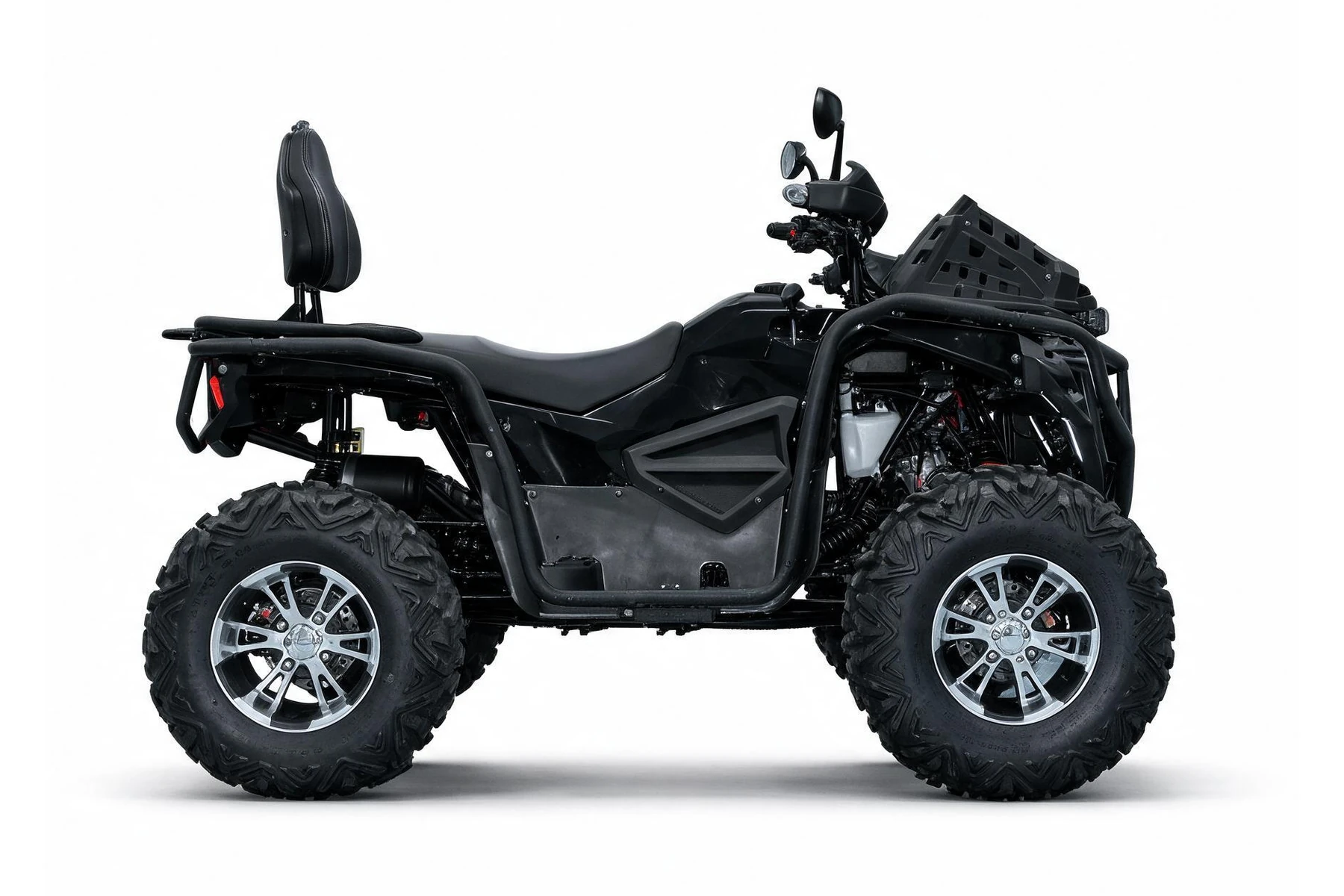

S350 vehicle overview.

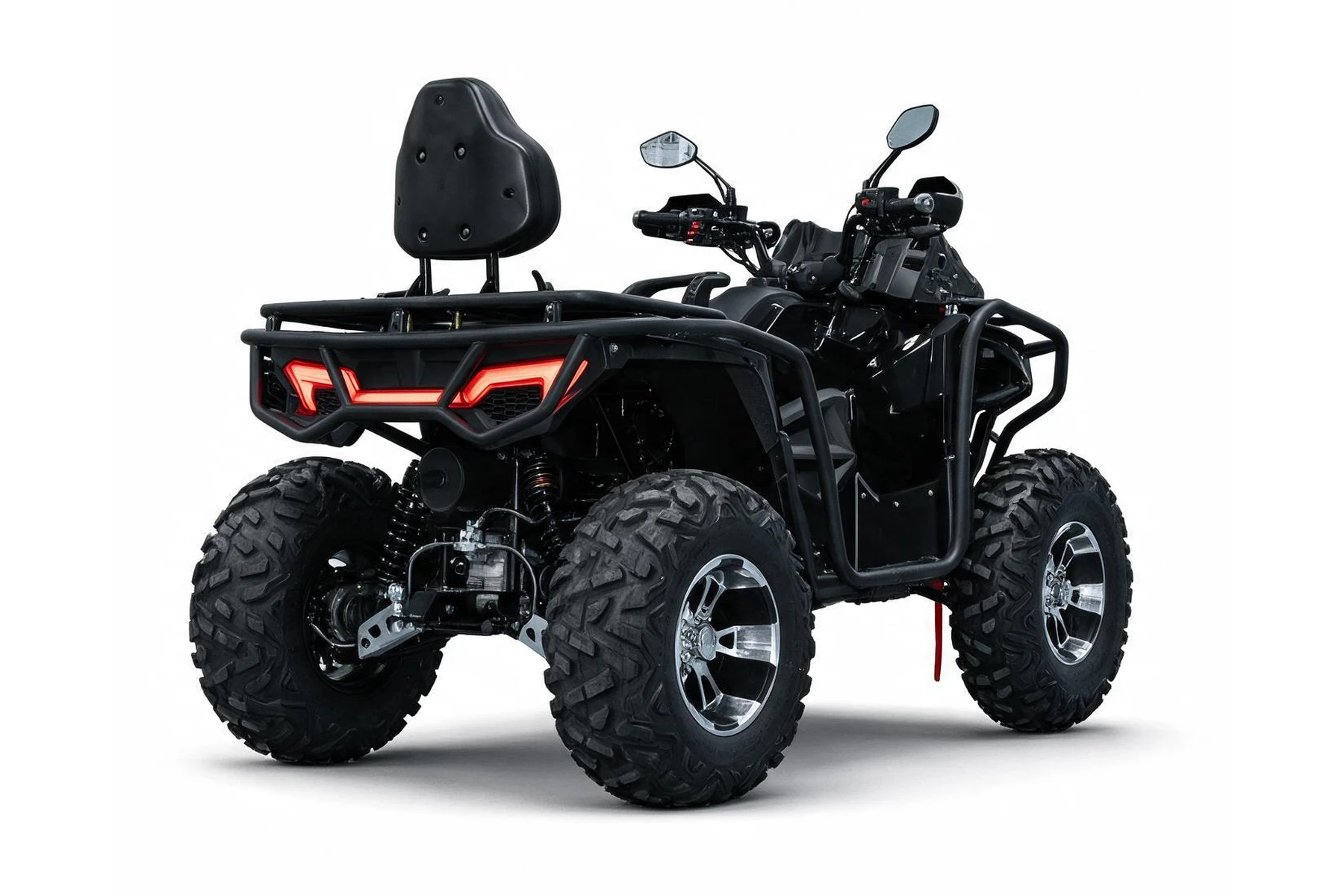

S350 model walkaround.
S350 design details.
Compare your options.
Compare engine, drive and practical specifications across the SUMAHAO range.
COMPARE MODELS
S700
- Engine
- 686 cc, single-cylinder
- Maximum power
- 35 kW @ 5,500 rpm
- Maximum torque
- 66 N·m @ 4,500 rpm
- Drive
- 2WD / 4WD + front & rear diff locks
- Power steering
- Standard EPS
- Fuel tank
- 25 L
- Ground clearance
- 300 mm
- Rack capacity
- Front 60 kg / rear 110 kg
S400
- Engine
- 472 cc, parallel twin
- Maximum power
- 33 kW @ 8,500 rpm
- Maximum torque
- 43 N·m @ 6,500 rpm
- Drive
- 2WD / 4WD + differential lock
- Power steering
- Standard EPS
- Fuel tank
- 25 L
- Ground clearance
- 330 mm
- Rack capacity
- Front 60 kg / rear 110 kg
S350
- Engine
- 321 cc, single-cylinder
- Maximum power
- 21 kW @ 7,000 rpm
- Maximum torque
- 34.5 N·m @ 5,000 rpm
- Drive
- 2WD / 4WD / differential lock
- Fuel tank
- 16 L
- Ground clearance
- 300 mm
- Rack capacity
- Front 50 kg / rear 90 kg
- Winch
- 3,000 lb
SMH110
- Engine
- 110cc Loncin, single-cylinder
- Fuel system
- EFI
- Transmission
- Forward / neutral / reverse
- Drive
- 2WD / chain
- Fuel tank
- 6.4 L
- Payload
- 70 kg
- Ground clearance
- 110 mm
- Curb weight
- 123 kg
Compare the key specifications for each model. Confirm your market-specific configuration, price and availability with SUMAHAO.
The whole picture.
21 product images, from the complete vehicle to its smallest details.
Meet the rest of the range.
SUMAHAOS700
Black & white. A closer look at the S700.
BORN FOR THE WILD.
Get to know the S700. Explore its design, take a closer look at the details, and find the information you need for your next step.
A CLOSER LOOK.
Start with the vehicle. Explore the form and visible components, then speak with our team about performance specifications.
Meet the S700.
See the model from the front, bodywork to wheels. For engine, drivetrain and performance figures, request the current specification sheet.
DESIGN, IN DETAIL.
A view of the whole vehicle. A closer look at the parts that give it its character.
An unmistakable profile.
From the rider’s perspective.
See the seat, backrest and the layout around the rider in the supplied model photographs.
GET TO KNOW YOUR ATV.
Explore the vehicle from another perspective.
FOCUS ON THE DETAILS.
Explore the photographed components. Ask our team about equipment and compatibility for your selected model.
VIDEOS.
A closer look at the design, controls and everyday details.
COMPARE MODELS.
See the S700, S400 and S350 side by side.
Compare the key specifications for each model. Confirm your market-specific configuration, price and availability with SUMAHAO.
GALLERY.
The S700, from every available perspective.
